Earthquake by ⦁ Bruce A. Bolt

Earthquake by ⦁ Bruce A. Bolt

Earthquake, any sudden shaking of the ground caused by the passage of seismic waves through Earth’s rocks. Seismic waves are produced when some form of energy stored in Earth’s crust is suddenly released, usually when masses of rock straining against one another suddenly fracture and “slip.” Earthquakes occur most often along geologic faults, narrow zones where rock masses move in relation to one another. The major fault lines of the world are located at the fringes of the huge tectonic plates that make up Earth’s crust. (See the table of major earthquakes.)

Little was understood about earthquakes until the emergence of seismology at the beginning of the 20th century. Seismology, which involves the scientific study of all aspects of earthquakes, has yielded answers to such long-standing questions as why and how earthquakes occur.

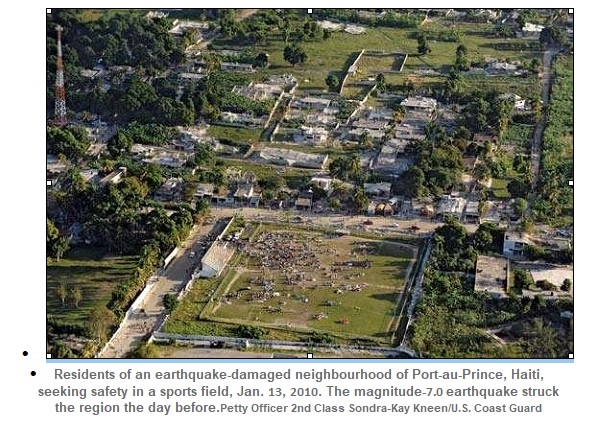

About 50,000 earthquakes large enough to be noticed without the aid of instruments occur annually over the entire Earth. Of these, approximately 100 are of sufficient size to produce substantial damage if their centres are near areas of habitation. Very great earthquakes occur on average about once per year. Over the centuries they have been responsible for millions of deaths and an incalculable amount of damage to property.

The Nature Of Earthquakes

Causes of earthquakes

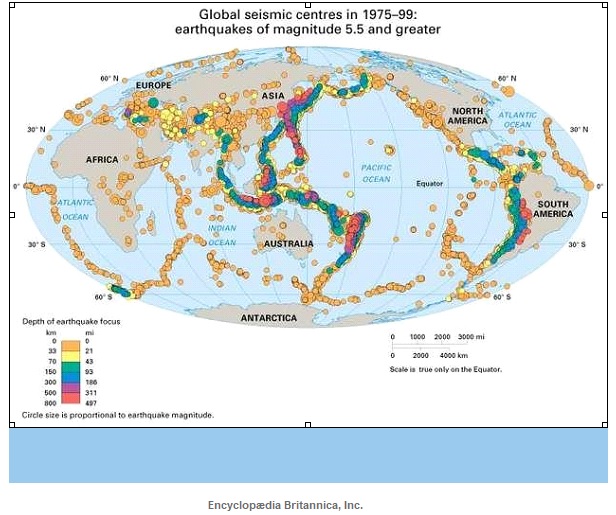

Earth’s major earthquakes occur mainly in belts coinciding with the margins of tectonic plates. This has long been apparent from early catalogs of felt earthquakes and is even more readily discernible in modern seismicity maps, which show instrumentally determined epicentres. The most important earthquake belt is the Circum-Pacific Belt, which affects many populated coastal regions around the Pacific Ocean—for example, those of New Zealand, New Guinea, Japan, the Aleutian Islands, Alaska, and the western coasts of North and South America. It is estimated that 80 percent of the energy presently released in earthquakes comes from those whose epicentres are in this belt. The seismic activity is by no means uniform throughout the belt, and there are a number of branches at various points. Because at many places the Circum-Pacific Belt is associated with volcanic activity, it has been popularly dubbed the “Pacific Ring of Fire.”
A second belt, known as the Alpide Belt, passes through the Mediterranean region eastward through Asia and joins the Circum-Pacific Belt in the East Indies. The energy released in earthquakes from this belt is about 15 percent of the world total. There also are striking connected belts of seismic activity, mainly along oceanic ridges—including those in the Arctic Ocean, the Atlantic Ocean, and the western Indian Ocean—and along the rift valleys of East Africa. This global seismicity distribution is best understood in terms of its plate tectonic setting.

Natural forces

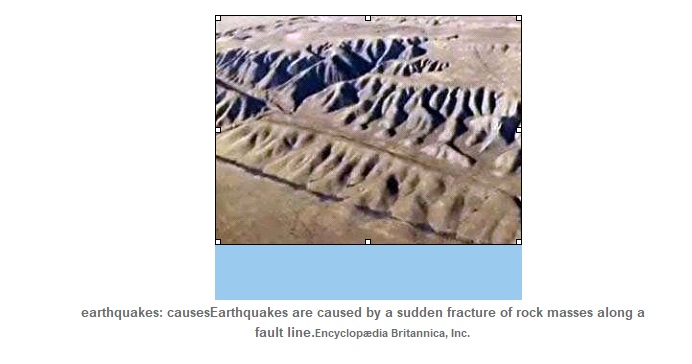

Earthquakes are caused by the sudden release of energy within some limited region of the rocks of the Earth. The energy can be released by elastic strain, gravity, chemical reactions, or even the motion of massive bodies. Of all these the release of elastic strain is the most important cause, because this form of energy is the only kind that can be stored in sufficient quantity in the Earth to produce major disturbances. Earthquakes associated with this type of energy release are called tectonic earthquakes.

Tectonics

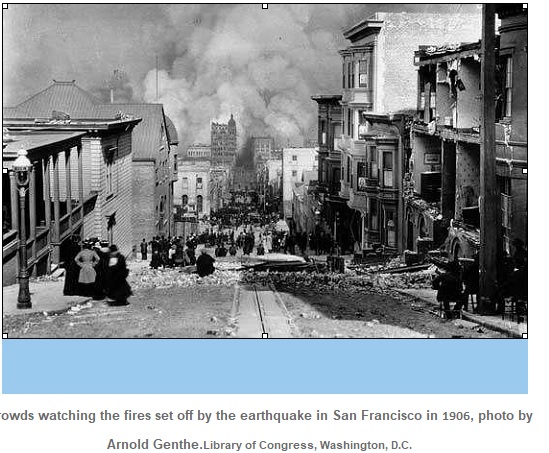

Tectonic earthquakes are explained by the so-called elastic rebound theory, formulated by the American geologist Harry Fielding Reid after the San Andreas Fault ruptured in 1906, generating the great San Francisco earthquake. According to the theory, a tectonic earthquake occurs when strains in rockmasses have accumulated to a point where the resulting stresses exceed the strength of the rocks, and sudden fracturing results. The fractures propagaterapidly through the rock, usually tending in the same direction and sometimes extending many kilometres along a local zone of weakness. In 1906, for instance, the San Andreas Fault slipped along a plane 430 km (270 miles) long. Along this line the ground was displaced horizontally as much as 6 metres (20 feet).

As a fault rupture progresses along or up the fault, rock masses are flung in opposite directions and thus spring back to a position where there is less strain. At any one point this movement may take place not at once but rather in irregular steps; these sudden slowings and restartings give rise to the vibrations that propagate as seismic waves. Such irregular properties of fault rupture are now included in the modeling of earthquake sources, both physically and mathematically. Roughnesses along the fault are referred to as asperities, and places where the rupture slows or stops are said to be fault barriers. Fault rupture starts at the earthquake focus, a spot that in many cases is close to 5–15 km under the surface. The rupture propagates in one or both directions over the fault plane until stopped or slowed at a barrier. Sometimes, instead of being stopped at the barrier, the fault rupture recommences on the far side; at other times the stresses in the rocks break the barrier, and the rupture continues.

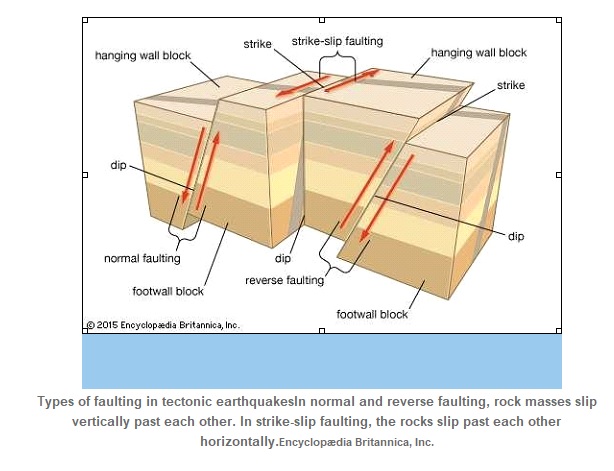

Earthquakes have different properties depending on the type of fault slip that causes them (as shown in the figure). The usual fault model has a “strike” (that is, the direction from north taken by a horizontal line in the fault plane) and a “dip” (the angle from the horizontal shown by the steepest slope in the fault). The lower wall of an inclined fault is called the footwall. Lying over the footwall is the hanging wall. When rock masses slip past each other parallel to the strike, the movement is known as strike-slip faulting. Movement parallel to the dip is called dip-slip faulting. Strike-slip faults are right lateral or left lateral, depending on whether the block on the opposite side of the fault from an observer has moved to the right or left. In dip-slip faults, if the hanging-wall block moves downward relative to the footwall block, it is called “normal” faulting; the opposite motion, with the hanging wall moving upward relative to the footwall, produces reverse or thrust faulting.

All known faults are assumed to have been the seat of one or more earthquakes in the past, though tectonic movements along faults are often slow, and most geologically ancient faults are now aseismic (that is, they no longer cause earthquakes). The actual faulting associated with an earthquake may be complex, and it is often not clear whether in a particular earthquake the total energy issues from a single fault plane.
Observed geologic faults sometimes show relative displacements on the order of hundreds of kilometres over geologic time, whereas the sudden slip offsets that produce seismic waves may range from only several centimetres to tens of metres. In the 1976 Tangshan earthquake, for example, a surface strike-slip of about one metre was observed along the causative fault east of Beijing, and in the 1999 Taiwan earthquake the Chelung-pu fault slipped up to eight metres vertically.

Showing scientifically that the Earth will come to an end as promised by Allah.

What will happen when our sun dies?

By Deborah Byrd and Eleanor Imster in SPACE | May 11, 2018 It won’t happen soon, not for another 5 billion years. Our sun’s fate, here.

An example of a planetary nebula, Abell 39. Five billion years from now, our own sun will look like this, when it goes through the planetary nebula stage of star death. Image via WIYN/NOAO/NSF/University of Manchester.
What does death mean, for the sun? It means our sun will run out of fuel in its interior. It’ll cease the internal thermonuclear reactions that enable stars to shine. It’ll swell into a red giant, whose outer layers will engulf Mercury and Venus and likely reach the Earth. Life on Earth will end. If the sun were more massive – estimates vary, but at least several times more massive – it would explode as a supernova. So … no supernova. But what? What happens next? An international team of astronomers recently used a new stellar data-model that predicts the life cycle of stars to answer this question.
Their research is published in the peer-reviewed journal Nature Astronomy. It suggests that the sun is almost exactly the lowest mass star that – at the end of its life – produces a visible, though faint, planetary nebula.

Artist’s concept of our sun as a red giant. Image via Chandra X-ray Observatory.
The name planetary nebula has nothing to do with planets. It describes a massive sphere of luminous gas and dust, material sloughed off an aging star. In the 1780s, William Herschel called these spherical clouds planetary nebulae because, through his early telescope, planetary nebulae looked round, like the planets in our solar system.
Astronomers already knew that 90 percent of all stars end their active lives as planetary nebulae. They were reasonably sure our sun would meet this fate. The key word here is visible. For years, scientists thought the sun has too low mass to create a visible planetary nebula.
Albert Zijlstra of the University of Manchester in England is a co-author of the study. He said in a statement:
When a star dies it ejects a mass of gas and dust – known as its envelope – into space. The envelope can be as much as half the star’s mass. This reveals the star’s core, which by this point in the star’s life is running out of fuel, eventually turning off and before finally dying.
It is only then the hot core makes the ejected envelope shine brightly for around 10,000 years – a brief period in astronomy. This is what makes the planetary nebula visible. Some are so bright that they can be seen from extremely large distances measuring tens of millions of light-years, where the star itself would have been much too faint to see.
Will that be the fate of our sun? Will it – at the end of its life – become briefly visible to alien astronomers on planets millions of light-years away? These astronomers say no. They say their new models predict our sun at the end of its life, though forming a planetary nebula, will remain faint.
Read more about this study from University of Manchester
By the way … what next? Eventually, the planetary nebula will disperse and fade. With its thermonuclear fuel gone, the sun will no longer be able to shine. The immensely high pressures and temperatures in its interior will slacken. The sun will shrink down to become a dying ember of a star, known as a white dwarf, only a little larger than Earth.

Artist’s concept of our sun as a white dwarf. Image via Chandra X-ray Observatory.
Bottom line: A study suggests our sun is about the lowest mass star that – at the end of its life – produces a visible, though faint, planetary nebula. What that is … and more on the fate of our sun, here.
Source: The mysterious age invariance of the cut-off the Planetary Nebula Luminosity Function
